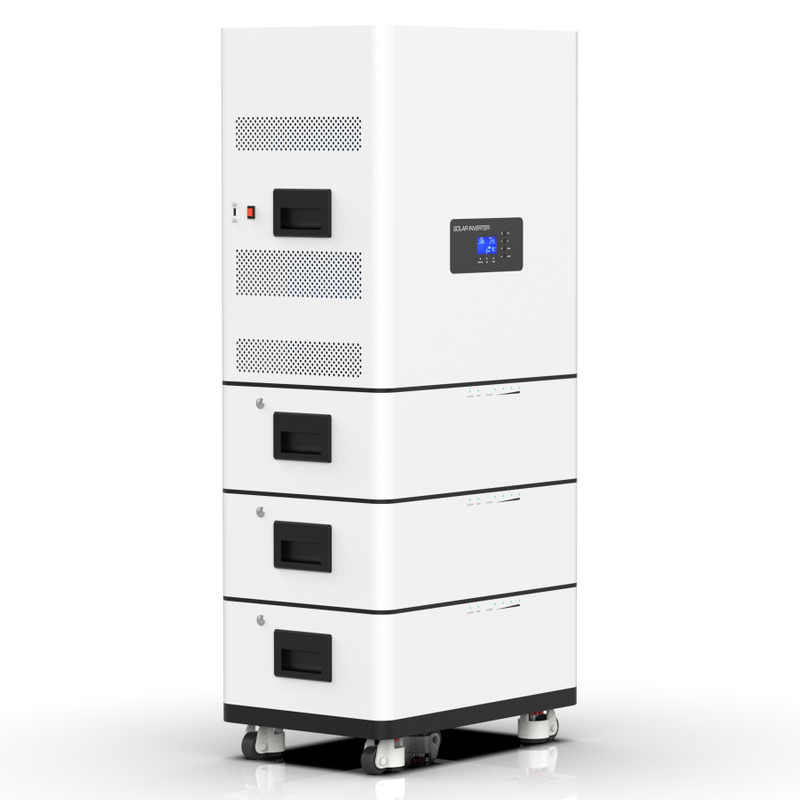

MK-ESS-1710K
MK SOLAR
MK-ESS-1710K
Excellent life 8500Cycles - 15Years full Warranty - Factory Price
MK SOLAR Home energy storage devices store electricity locally, for later consumption, also known as “Battery Energy Storage System” (or “BESS” for short), at their heart are rechargeable batteries, typically based on lithium-ion controlled by a computer with intelligent software to handle charging and discharging cycles. Companies are also developing smaller flow battery technology for home use. As local energy storage technologies for home use, they are smaller relatives of battery-based grid energy storage and support the concept of distributed generation. When paired with on-site generation, they can virtually eliminate blackouts in an off-the-grid lifestyle.
*All in one design
*High efficiency up to 98.2%
*WIFI Module
*Cloud software platform monitor
*APP on phone monitor
*Plug and Play
*Digital controller
*DC/AC Surge protection
*Optimization of off-peak Utility power
*On & Off Grid Availability
*Different time periods for battery charging/discharging
*DC couple and AC couple to retrofit existing solar system
* Battery BMS & inverter communication for perfect collaboration
* Single phase, split phase, three phase output available
* Support the diesel generator and the grid access at the same time
Projects | Specification | Remark | |
Cell unit parameter | |||
1 | Battery types and materials | LiFePO4 | |
2 | Rated voltage/capacity | 3.2V/172.5Ah | |
3 | Single battery voltage range | 2.5V~3.65V | |
4 | Single battery weight | 3.3Kg | |
5 | The battery internal resistance | ≤ 0.3mΩ | |
6 | Cell size | 174*54*204mm(L*W*H) | |
Battery Module | |||
1 | Rated voltage | 51.2V | |
2 | Rated capacity | 172.5Ah | |
3 | Battery pack voltage range | 43.2V~58.4V | |
4 | Total Power | 8.8kWh | |
5 | Combination | 1P16S | |
6 | Insulation resistance test value | ≥20MΩ | |
7 | Operating temperature | Charging 0 ~ 55℃; | |
8 | Standard charging current | ≤100A | |
9 | Standard discharge current | ≤100A | |
10 | Total system weight | ~65KG | |
11 | Total system size | 800*550*230mm | Subject to upgrade |
Hybrid inverter module | |||
12 | Rated Power | 10KW | Revo-10kw hybrid |
13 | Max AC output current | 47.8A | |
14 | Grid Type | Off /On Grid | Supported |
15 | Output voltage range | 120/240Vac(split phase), | Supported |
16 | Max input power of photovoltaic | 13KW | |
17 | MPPT voltage range | 120-500VDC | |
18 | Max input voltage of PV | 500VDC | |
19 | Max input current of MPPT | 12A | |
20 | MPPT tracker /string | 4/1 | |
21 | Automatic switch time | <20ms | |
22 | Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
23 | External Temperature Sensor | YES | |
24 | frequency range | 50HZ/60HZ | |
25 | WIFI Module | Available | |
26 | APP monitor | IOS/Android | Supported |
Built-in BMS
Project | Content | default parameters | Remarks |
Overcharge Protection | Alarm voltage | 3600mV | Y |
Protection voltage | 3700mV | Y | |
Protection latency time | 1.0S | Y | |
Over-discharge Protection | Alarm voltage | 2800mV | Y |
Protection voltage | 2700mV | Y | |
Protection latency time | 1.0S | Y | |
Charging Over-current Protection | Alarm current | 205A | Y |
Protection current | 210A | Y | |
Protection latency time | 1.0S | Y | |
Short Circuit Protection | Protection current | ≥350A | Y |
Protection latency time | ≤300uS | Y | |
MOSFET High-temperature Protection | Alarm temperature | 90℃ | Y |
Protection temperature | 115℃ | Y | |
Batteries Temperature Protection | Low temperature charging alarm/protection temperature | 0℃/-5℃ | Y |
High temperature charging alarm/protection temperature | 60℃/65℃ | Y | |
The Environmental Temperature Alarm | Low-temperature alarm/protection temperature | -15℃/-20℃ | Y |
High-temperature alarm/protection temperature | 65℃/75℃ | Y | |
A Serial Port Communication | Isolated RS - 232 / RS - 485 | / | Y |
Bluetooth | Bluetooth function | / | optional |
Charging Current Limiting Function | Charging current limiting current | 20A | optional |
Display Screen | Display function | / | optional |
MK Batteries Certificate
MK Advanced Production Line
MK Batteries Wooden Packages
MK Batteries Compatible with Inverter
Contact Us to get a Latest Quote Now!
