| Quantity: | |
|---|---|

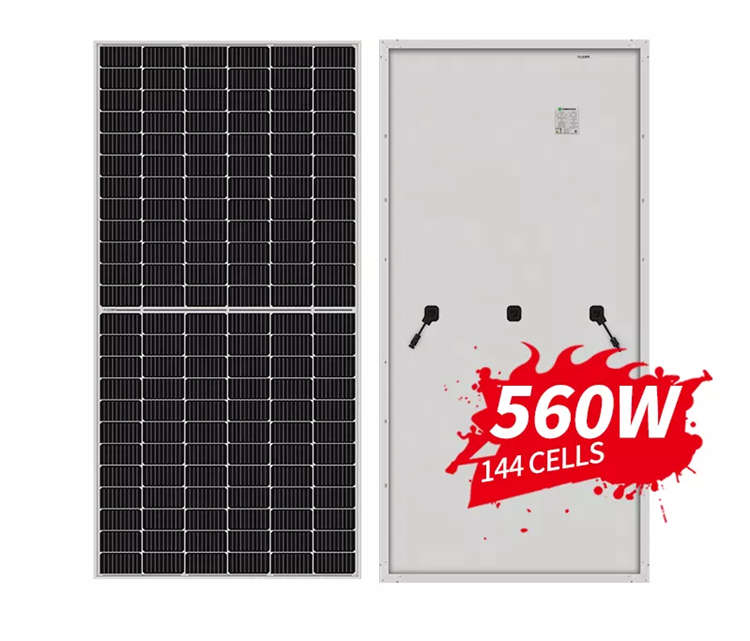

535W 540W 545W 550W 555W
MK SOLAR
535W 540W 545W 550W 555W
Features:
Size ( mm) / Size ( inch) L*W*H
2256*1133*35 / 88.8*44.6*1.3
Weight
27.2kgs/ 59 lbs
Application
Home ESS, Solar ESS, Solar off grid backup system, Solar Hybrid inverter UPS
Package
Carton Box
Payment terms
T/T
Delivery time
With 15 days after deposit
| Mechanical Parameters | |
| Cell Orientation | 144 (6*24) |
| Junction Box | IP68, Three diodes |
| Output Cable | 4mm², +400, -200mm/±1400mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Dimensions (LxWxH) | 2256x1133x35mm |
| Weight | 27.2kg |
| Packaging | 31pcs per pallet/ 155pcs per 20' GP/ 620pcs per 40' HC |
| Operating Parameters | |
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0~3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class Ⅱ |
| Fire Rating | UL type 1 or 2 IEC Class C |
WHY CHOOSE US?
1. Experience, More than 16 years specialized in lithium battery, leaders of lithium lifepo4 battery.
2. Certification, UL 9540, UL 1973, CE, MSDS, UN38.3, ISO and IEC from national center for quality supervision and Inspection of battery products approved.
3. Quality Assurance, A product life with standard 10 year warranty.
4. Raw Material & Process-- All products are made with Grade A LiFePO4 cells from Top brands, and meet UL standards.
5. Response Speed,Solution within 24H hours, delivery within 7 days for regular products, customization available.
6. Customer Service,Sales team of professional engineers, 24H hours online service, solve customer problems.
Features:
Size ( mm) / Size ( inch) L*W*H
2256*1133*35 / 88.8*44.6*1.3
Weight
27.2kgs/ 59 lbs
Application
Home ESS, Solar ESS, Solar off grid backup system, Solar Hybrid inverter UPS
Package
Carton Box
Payment terms
T/T
Delivery time
With 15 days after deposit
| Mechanical Parameters | |
| Cell Orientation | 144 (6*24) |
| Junction Box | IP68, Three diodes |
| Output Cable | 4mm², +400, -200mm/±1400mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Dimensions (LxWxH) | 2256x1133x35mm |
| Weight | 27.2kg |
| Packaging | 31pcs per pallet/ 155pcs per 20' GP/ 620pcs per 40' HC |
| Operating Parameters | |
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0~3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class Ⅱ |
| Fire Rating | UL type 1 or 2 IEC Class C |
WHY CHOOSE US?
1. Experience, More than 16 years specialized in lithium battery, leaders of lithium lifepo4 battery.
2. Certification, UL 9540, UL 1973, CE, MSDS, UN38.3, ISO and IEC from national center for quality supervision and Inspection of battery products approved.
3. Quality Assurance, A product life with standard 10 year warranty.
4. Raw Material & Process-- All products are made with Grade A LiFePO4 cells from Top brands, and meet UL standards.
5. Response Speed,Solution within 24H hours, delivery within 7 days for regular products, customization available.
6. Customer Service,Sales team of professional engineers, 24H hours online service, solve customer problems.
