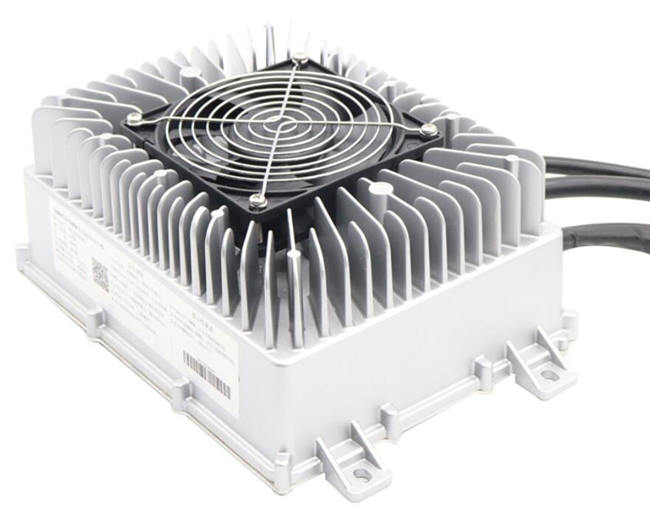

MK-C4820-N
MK SOLAR
MK-C4820-N
Features:
Dynamic tracking and auto adjust the charging paremeters
Most suitable for fast battery charging
Operate with wider input voltage range
Compact design and waterproof
High efficiency >99%
Greatly prolong the working life of the battery
Smart fan control & CANBUS communication
Protection and alarm functions of over voltage/current/load/temperature, reverse connection, auto shut off when fully charged, no load protection.
Apply to electric pallet trucks, forklift, lift truck, electric tour bus, golf cart, motorhome, RV, caravan, marine boat, ship, solar energy storage etc.
Apply to all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc.
| Model | MK-C4820-N |
| Rated Power | 1200W |
| Output Voltage | 48V-66Vdc |
| Charging Mode | CC/CV |
| Control Mode | Intelligent independent digital control chip |
| Efficiency | >98% |
| Power factor | 0.99-1.0 |
| Battery Voltage | 48Vdc |
| Support Battery Type | LiFePO4/AGM/Lithium/Lead acid/GEL/Flooded |
| AC Input Voltage | 100-110-120Vac/ 220-230-240Vac |
| AC Input Frequency | 50Hz /60Hz |
| Max Charge Current | 20A |
| Cooling | Inteligent Fan |
| Dimension ( L*W*H) | 282 ×146× 82mm (Customized) |
| Net Weight | 2.5KG |
| Auxiliary Power | 12V (Optional) |
| Noise | <30db |
| Waterproof | IP67 |
| Communication interface | CANBUS (Optional) |
| Operation Temperature | minus 40-75°C |
| Recommend temperature | 0-50°C |
| Storage Temperature | minus 15 - 50°C |
| Protection | overload, short circuit, over-temperature, over current & under & over voltage protection, Battery Reverse Connection Protection, Full Charge Automatic Shutdown,Output no-load protection |
WHY CHOOSE US
1. Experience, More than 16 years specialized in lithium battery, leaders of lithium lifepo4 battery.
2. Certification, UL 9540, UL 1973, CE, MSDS, UN38.3, ISO and IEC from national center for quality supervision and Inspection of battery products approved.
3. Quality Assurance, A product life with standard 10 year warranty.
4. Raw Material & Process-- All products are made with Grade A LiFePO4 cells from Top brands, and meet UL standards.
5. Response Speed,Solution within 24H hours, delivery within 7 days for regular products, customization available.
6. Customer Service,Sales team of professional engineers, 24H hours online service, solve customer problems.
