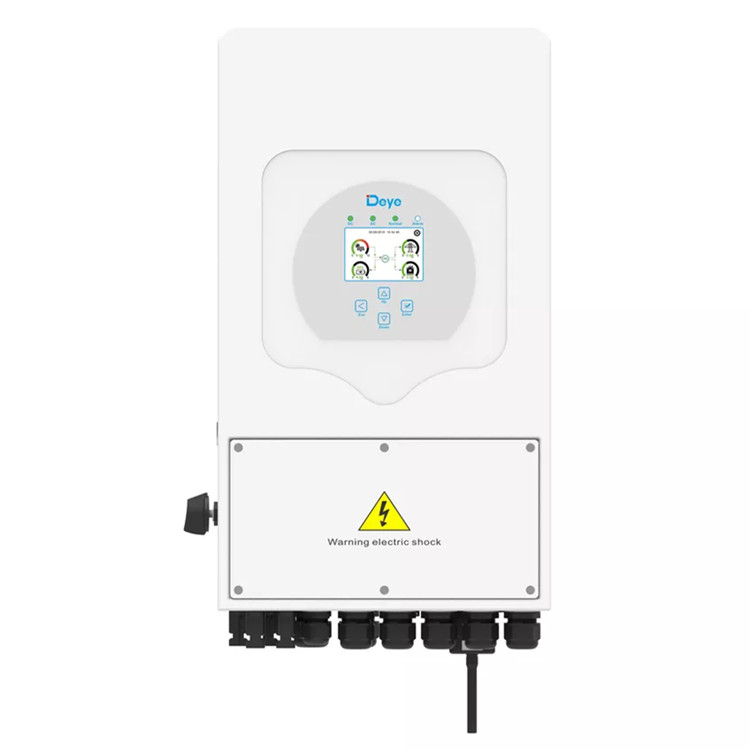

Deye Inverters
Deye
Deye Inverters
Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
| item | value |
| Place of Origin | China |
| Anhui | |
| Brand Name | Deye |
| Model Number | SUN-5K-SG03LP1 |
| Input Voltage | 125-500V |
| Output Voltage | 220/230V |
| Output Current | |
| Output Frequency | 50Hz/60Hz |
| Output Type | Single |
| Size | 789 x 490 x 357 (mm) |
| Type | DC/AC Inverters |
| Inverter Efficiency | 99.9% |
| Certificate | TUV,CE,IEC |
| Warranty | 5 YEARS |
| Weight | 25KG |
| Model | SUN-3.6K-SG03LP1 | SUN-5K-SG03LP1 |
| Battery Input Data | ||
| Battery Type | Lead-acid or Lithium-iron | |
| Battery Voltage Range (V) | 40-60V | |
| Max.Charging Current (A) | 90A | 120A |
| Max.Discharging Current (A) | 90A | 120A |
| Charging Curve | 3 Stages/Equalization | |
| External Temperature Sensor | Optional | |
| PV Strings Input Data | ||
| Max.DC Input Power (W) | 4680W | 6500W |
| PV Input Voltage (V) | 370V(100V~500V) | |
| MPPT Range (V) | 125-425V | |
| Full Load DC Voltage Range | 240-425V | |
| Start-up Voltage (V) | 125V | |
| PV Input Current (A) | 11A+11A | |
| No.of MPPT Trackers | 2 | |
| No.of Strings Per MPPT Tracker | 1+1 | |
| AC Output Data | ||
| Rated AC Output and UPS Power (W) | 3600W | 5000W |
| Max AC Output Power (W) | 3960W | 5500W |
| Peak Power(off grid) | 2 times of rated power,10S | |
| AC Output Rated Current(A) | 15.7A | 21.7A |
| Max.AC Current(A) | 18A | 25A |
| Max Continuous AC Passthrough(A) | 35A | |
| Output Frequency and Voltage | 50/60Hz; 220/230/240Vac(single phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| Efficiency | ||
| Max.Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
WHY CHOOSE US?
1. Experience, More than 16 years specialized in lithium battery, leaders of lithium lifepo4 battery.
2. Certification, UL 9540, UL 1973, CE, MSDS, UN38.3, ISO and IEC from national center for quality supervision and Inspection of battery products approved.
3. Quality Assurance, A product life with standard 10 year warranty.
4. Raw Material & Process-- All products are made with Grade A LiFePO4 cells from Top brands, and meet UL standards.
5. Response Speed,Solution within 24H hours, delivery within 7 days for regular products, customization available.
6. Customer Service,Sales team of professional engineers, 24H hours online service, solve customer problems.
