10kwh 48v Lithium Solar Battery Solar Power Solar Storage Solar Panel Battery Solar Lithium 48V 200Ah Solar Battery For Solar System

Grade A battery,  quick delivery
Voltage:
Capacity:
Energy:
Lifecycle:
Availability:
Quantity:
  • MK-512D200-PR

  • MK SOLAR

  • MK-512D200-PR



                       Excellent life 8500Cycles - 15Years full Warranty - Factory Price


MK SOLAR Home energy storage devices store electricity locally, for later consumption, also known as “Battery Energy Storage System” (or “BESS” for short), at their heart are rechargeable batteries, typically based on lithium-ion controlled by a computer with intelligent software to handle charging and discharging cycles. Companies are also developing smaller flow battery technology for home use. As local energy storage technologies for home use, they are smaller relatives of battery-based grid energy storage and support the concept of distributed generation. When paired with on-site generation, they can virtually eliminate blackouts in an off-the-grid lifestyle.


Features

  • Modular design;

  • Standardized production;

  • Strong commonality;

  • Easy installation, operation and maintenance;

  • Perfect BMS protection and control system for over current, over voltage, insulation and the like;

  • Utilization of lithium iron phosphate cell with low internal resistance and high rate;

  • High consistency of internal resistance, voltage and capacity of single cell;

  • A long  life cycle of >7000 times; a service life of more than 30+years;

  • Fast charging and discharging support;

  • Visual LCD display: allows you to set operating parameters, view real-time data and operating status

  • Communication protocol: CAN2.0 and RS485, which can be used in various scenarios.

  • Compatible and communicate with Various Inverters such as SMA, Victron, Growatt, Schneider, Solis, etc.

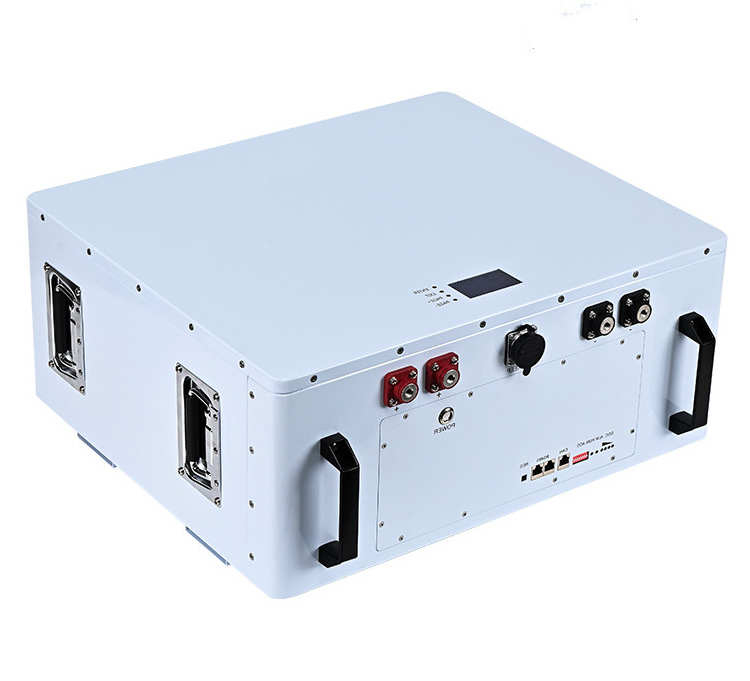

  • MK-lithium powerwall-10kwh-4


  • Model

    MK-512D200-Powerwall

    Type

    Lifepo4 Battery

    Capacity

    200AH

    Voltage

    51.2V

    Energy 10.3kwh

    Charge Cut-off Voltage

    56V

    Discharge Cut-off Voltage

    44V

    Max Charge Current

    100A

    Continuous Discharge Current

    100A

    Peak Discharge Current

    200A

    Charge/Discharge connector

    M8 Screw-(Red+/Black-)

    Battery Housing

    Metal

    Operating temperature

    Charging:0℃-50℃

    Discharge -20℃-60℃

    Storage temperature

    15℃-35℃

    Protection function

    OCVP/ODVP/OCP/SCP etc.

    DOD (Depth Of Discharge)

    100%

    Size

    Customizable

    Weight

    88KG


  • MK-lithium powerwall-10kwh-3


  • MK-lithium powerwall-10kwh-2


                                                      Built-in BMS


Project Content default parameters  Remarks
Overcharge Protection Alarm voltage 3600mV Y
Protection voltage 3700mV Y
Protection latency time 1.0S Y
Over-discharge Protection Alarm voltage 2800mV Y
Protection voltage 2700mV Y
Protection latency time 1.0S Y
Charging Over-current Protection Alarm current 205A Y
Protection current 210A Y
Protection latency time 1.0S Y
Short Circuit Protection Protection current ≥350A Y
Protection latency time ≤300uS Y
MOSFET High-temperature Protection Alarm temperature 90℃ Y
Protection temperature 115℃ Y
Batteries Temperature Protection Low temperature charging alarm/protection temperature 0℃/-5℃ Y
High temperature charging alarm/protection temperature 60℃/65℃ Y
The Environmental Temperature Alarm Low-temperature alarm/protection temperature -15℃/-20℃ Y
High-temperature alarm/protection temperature 65℃/75℃ Y
A Serial Port Communication Isolated RS - 232 / RS - 485 / Y
Bluetooth
Bluetooth function / optional
Charging Current Limiting Function Charging current limiting current 20A optional
Display Screen Display function / optional


  • MK-lithium powerwall-10kwh-1


                                                 MK Batteries Certificate


MK SOLAR Certificate











                                          MK Advanced Production Line

MK SOLAR-FACTORY-1


MK SOLAR-FACTORY-2


MK-Factory



                                               MK Batteries Wooden Packages

MK battery package


MK battery package-1


                                 MK Batteries Compatible with Inverter

        MK Inverter compatible List



                                                   Contact Us to get a Latest Quote Now!
